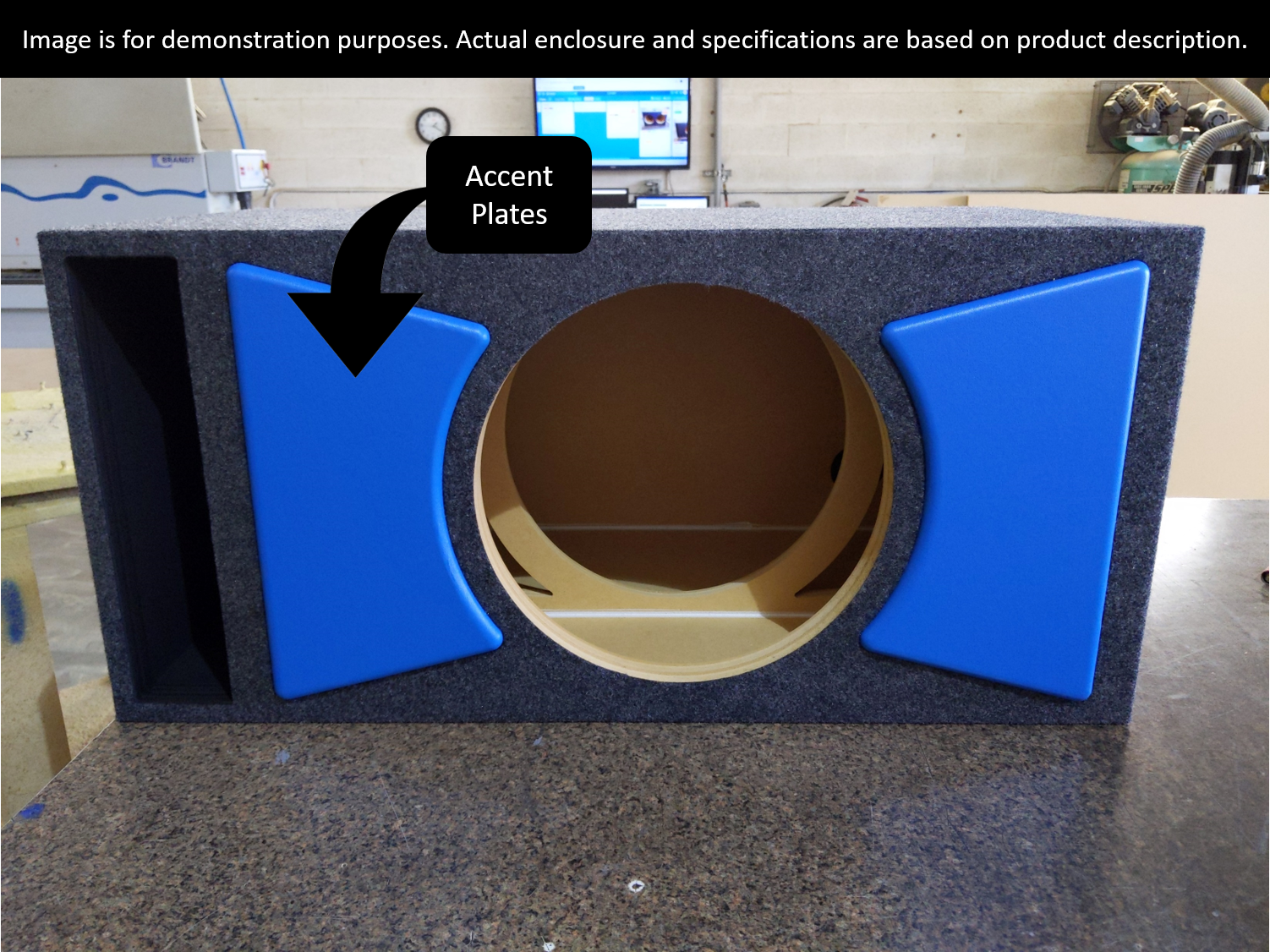

What is a Stage 1?
The Stage 1 is the standard enclosure to get you up and running.
- 0.75” Front Baffle: Standard mounting surface.
- CNC Machined: Automatic router cuts all the parts to perfection.
- Automotive Grade Carpet: Durable and closely match the trunk area.
- Gold Plated Terminal Cups: Increase electrical conductivity.
|Compatible Subwoofer||JL Audio 10W1V2-4
||Enclosure specifically built for subwoofer.|
||Provides deep bass!|
|Terminal Cups||One (1)||24 kt. Gold plated.|
|Finish Material||Carpet||Automotive grade.|
||Left to right.|
||Floor to top.|
||Front to back.|
|Net Volume||1.00 ft³||All displacements have been taken into account.|
|Tuning Frequency (Fb)||30.92 Hz.||Enclosure tuning frequency.|
|Port Width||1.000"||Width of the port.|
|Port Area||11.537 ft²||Crossectional area of the port.|
|Cutout Diameter||9.063"||Specific cutout diameter for the subwoofer.|
|Wall Thickness||0.750"||Width of the construction material.|
|Baffle Thickness||0.750"||Solid mounting surface!|
|Weight||24 lbs.||Estimated weight of enclosure.|
