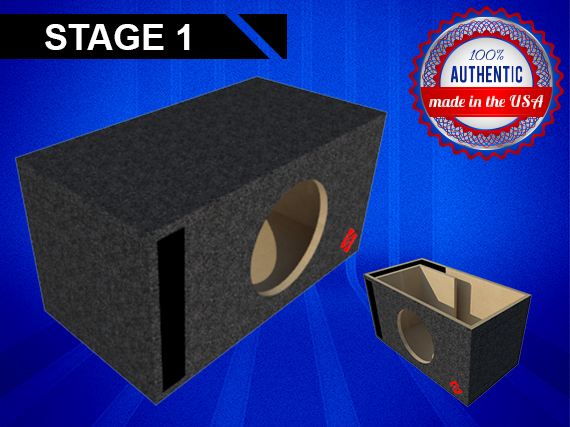

What is a Stage 1?
The Stage 1 is the standard enclosure to get you up and running.
Features!
- 0.75” Front Baffle: Standard mounting surface.
- CNC Machined: Automatic router cuts all the parts to perfection.
- Automotive Grade Carpet: Durable and closely match the trunk area.
- Gold Plated Terminal Cups: Increase electrical conductivity.
General | Value | Description |
---|---|---|
Compatible Subwoofer | JL Audio 12W3V2-D6 |
Enclosure specifically built for subwoofer. |
Enclosure Stage | 1 |
Entry Level. |
Enclosure Type | Ported |
Provides deep bass! |
Terminal Cups | One (1) | 24 kt. Gold plated. |
Finish Material | Carpet | Automotive grade. |
Physical | Value | Description |
Width | 29.000" |
Left to right. |
Height | 14.000" |
Floor to top. |
Depth | 12.375" |
Front to back. |
Net Volume | 1.75 ft³ | All displacements have been taken into account. |
Tuning Frequency (Fb) | 30.83 Hz. | Enclosure tuning frequency. |
Port Width | 1.375" | Width of the port. |
Port Area | 17.243 ft² | Crossectional area of the port. |
Cutout Diameter | 11.060" | Specific cutout diameter for the subwoofer. |
Wall Thickness | 0.750" | Width of the construction material. |
Baffle Thickness | 0.750" | Solid mounting surface! |
Weight | 29 lbs. | Estimated weight of enclosure. |
