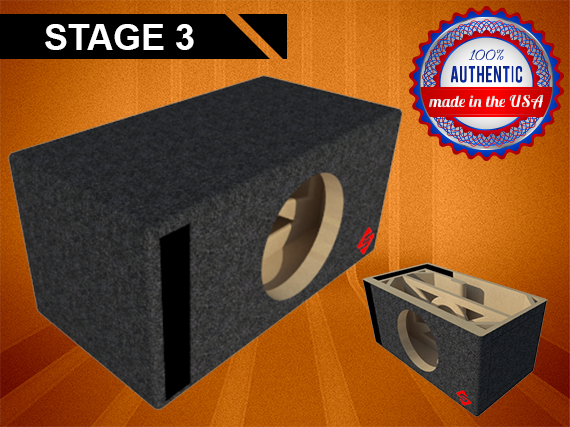

Stage 3 Ported Enclosure for Single JL Audio 12W6V3-D4

2 sold in last 8 hours
$300.00
$300.00

customers are viewing this product
Stage 3 Ported Enclosure for Single JL Audio 12W6V3-D4

What is a Stage 3?
The Stage 3 comes with many features which are designed to get the best performance and sound quality out of the subwoofer.

Features!

  • 1.75” Front Baffle: Provides an exceptionally strong mounting surface.
  • Vertical Bracing System (VBS): Prevents enclosure distortion.
  • Reinforced Port: Helps reduce port noise.
  • 45º Internal Corners: Increase sound quality.
  • Rounded Corners: Prevent 3dB drop-offs.
  • CNC Machined: Automatic router cuts all the parts to perfection.
  • Automotive Grade Carpet: Durable and closely match the trunk area.
  • Gold Plated Terminal Cups: Increase electrical conductivity.
Click HERE for additional Stage 3 details.
    General Value Description
    Compatible Subwoofer JL Audio 12W6V3-D4
    Enclosure specifically built for subwoofer.
    Enclosure Stage 3
    Extreme Performance.
    Enclosure Type Ported
    Provides deep bass!
    Terminal Cups One (1) 24 kt. Gold plated.
    Finish Material Carpet Automotive grade.
    Physical Value Description
    Width 27.000"
    Left to right.
    Height 13.000"
    Floor to top.
    Depth 14.625"
    Front to back.
    Net Volume 1.30 ft³ All displacements have been taken into account.
    Tuning Frequency (Fb) 33.33 Hz. Enclosure tuning frequency.
    Port Width 1.750" Width of the port.
    Port Area 20.195 ft² Crossectional area of the port.
    Cutout Diameter 11.020" Specific cutout diameter for the subwoofer.
    Wall Thickness 0.750" Width of the construction material.
    Baffle Thickness 1.750" Solid mounting surface!
    Weight 40 lbs. Estimated weight of enclosure.

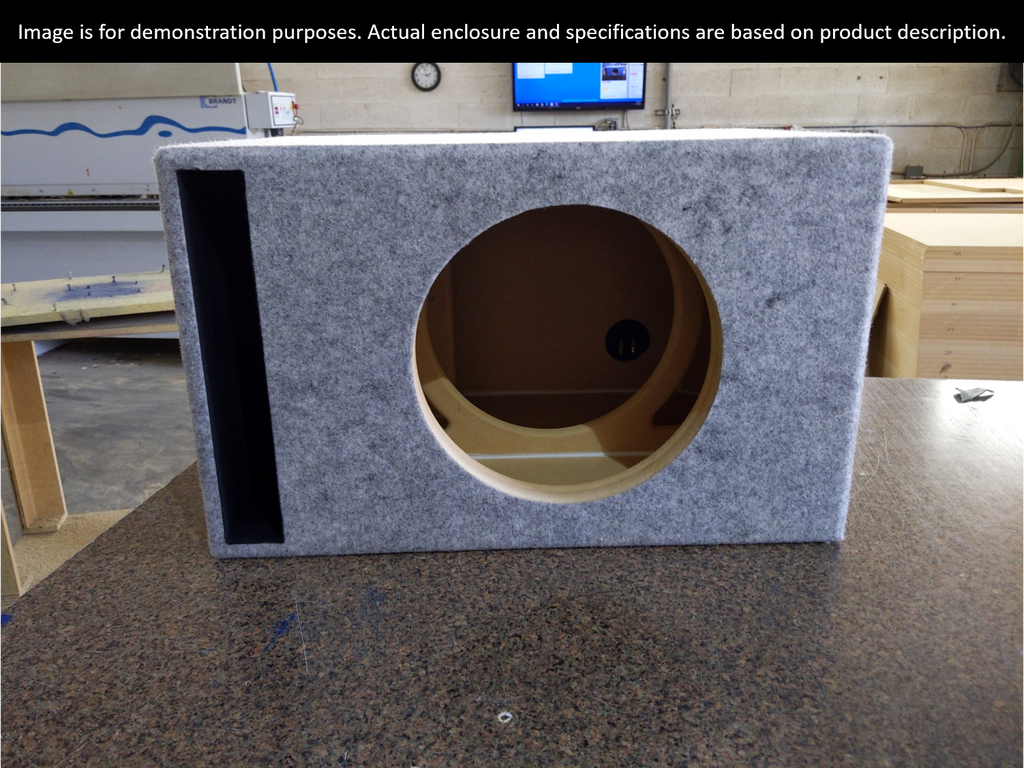

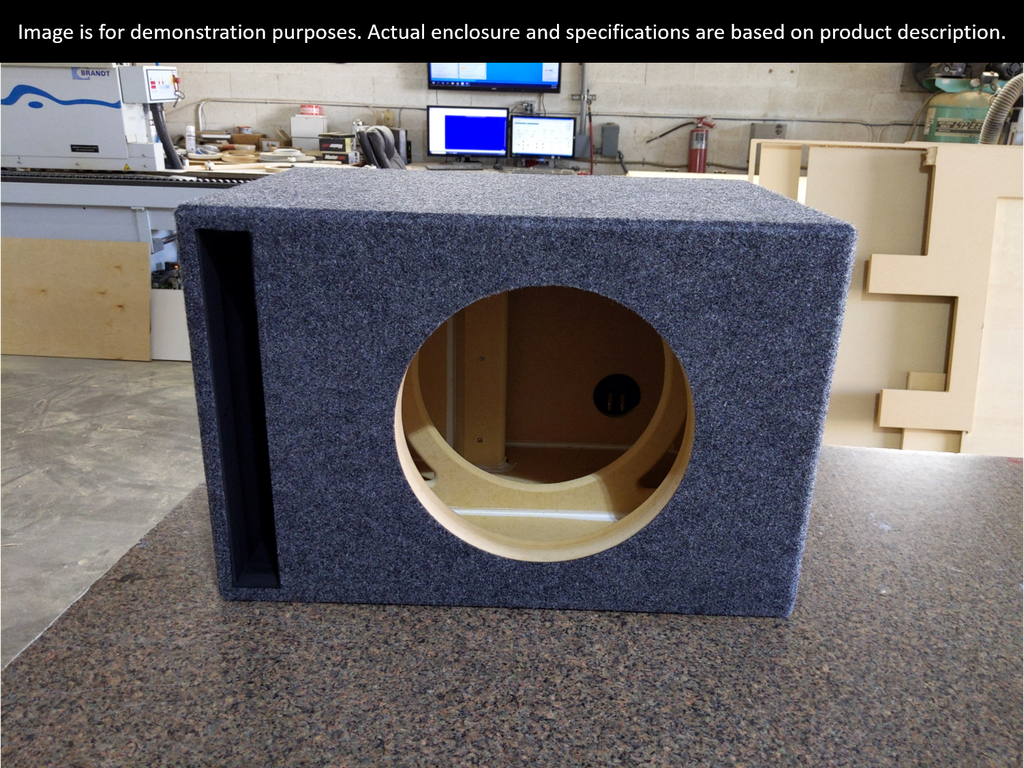

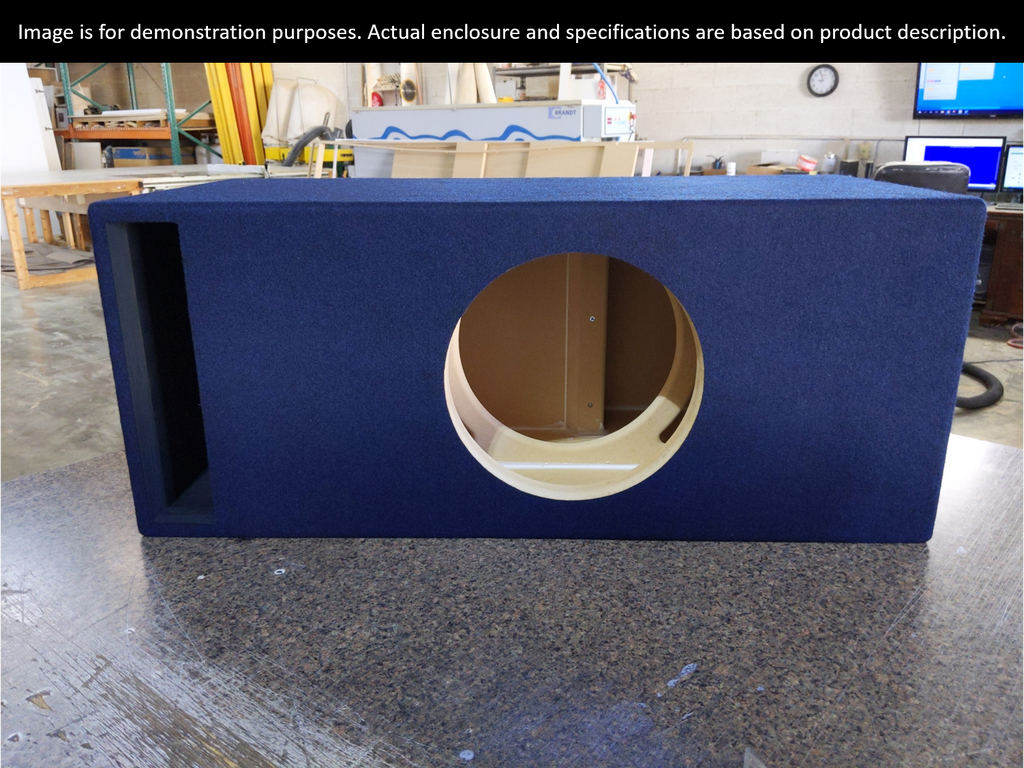

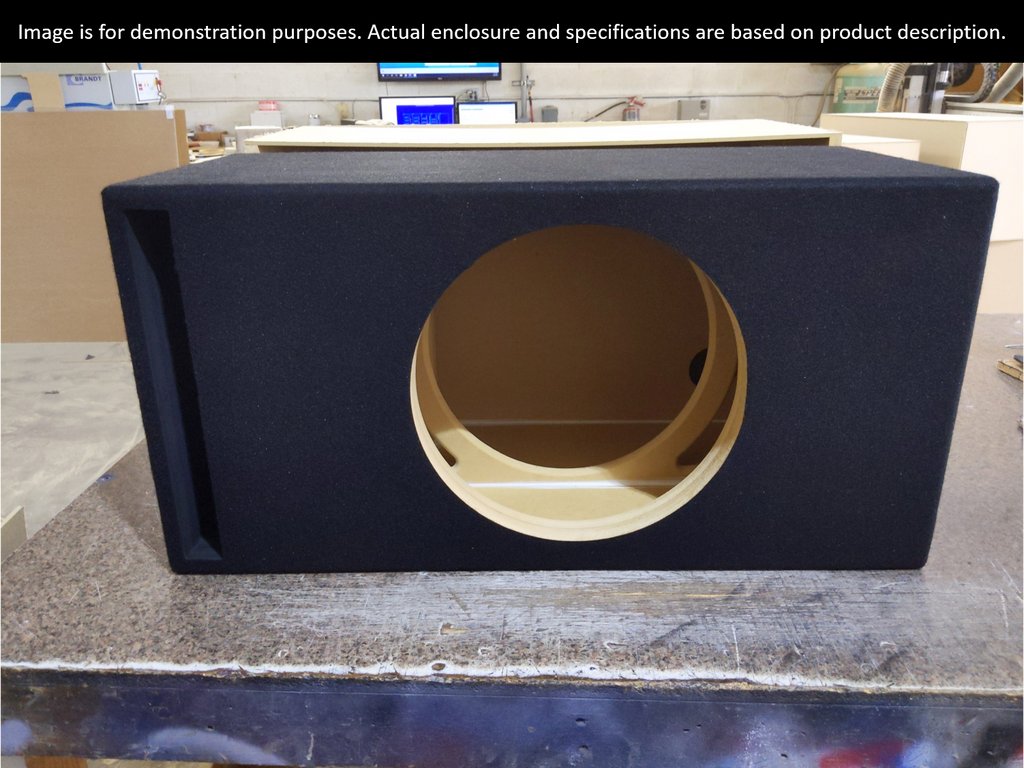

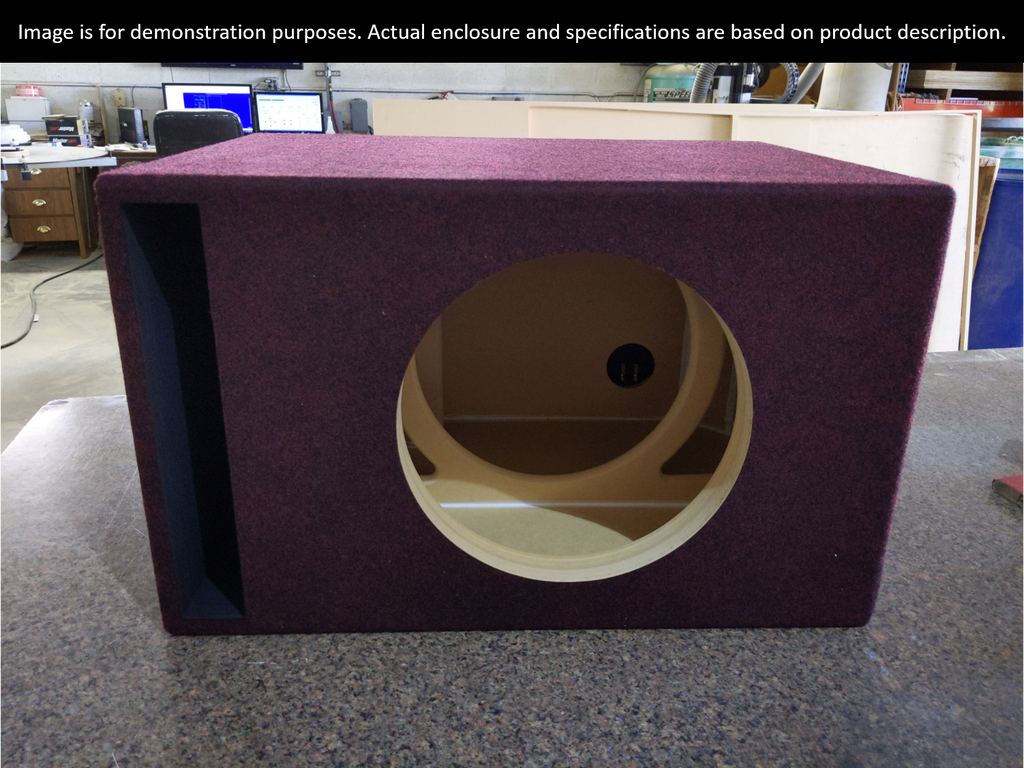

    Stage 3 Ported Single - Orientation
