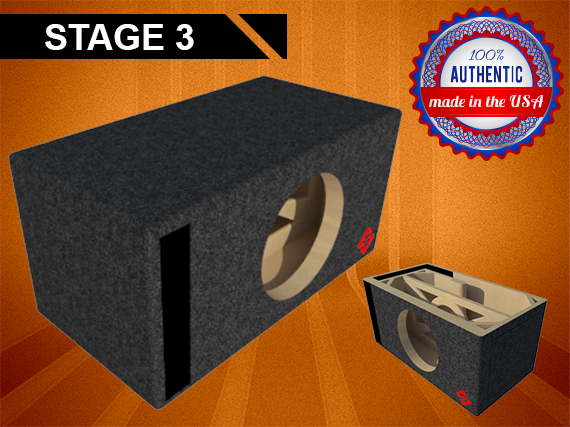

What is a Stage 3?
The Stage 3 comes with many features which are designed to get the best performance and sound quality out of the subwoofer.
Features!
- 1.75” Front Baffle: Provides an exceptionally strong mounting surface.
- Vertical Bracing System (VBS): Prevents enclosure distortion.
- Reinforced Port: Helps reduce port noise.
- 45º Internal Corners: Increase sound quality.
- Rounded Corners: Prevent 3dB drop-offs.
- CNC Machined: Automatic router cuts all the parts to perfection.
- Automotive Grade Carpet: Durable and closely match the trunk area.
- Gold Plated Terminal Cups: Increase electrical conductivity.
| General | Value | Description |
|---|---|---|
| Compatible Subwoofer | Skar Audio evl-15 |
Enclosure specifically built for subwoofer. |
| Enclosure Stage | 3 |
Extreme Performance. |
| Enclosure Type | Ported |
Provides deep bass! |
| Terminal Cups | One (1) | 24 kt. Gold plated. |
| Finish Material | Carpet | Automotive grade. |
| Physical | Value | Description |
| Width | 35.000" |
Left to right. |
| Height | 17.000" |
Floor to top. |
| Depth | 18.250" |
Front to back. |
| Net Volume | 3.50 ft³ | All displacements have been taken into account. |
| Tuning Frequency (Fb) | 31.23 Hz. | Enclosure tuning frequency. |
| Port Width | 2.875" | Width of the port. |
| Port Area | 44.677 ft² | Crossectional area of the port. |
| Cutout Diameter | 13.950" | Specific cutout diameter for the subwoofer. |
| Wall Thickness | 0.750" | Width of the construction material. |
| Baffle Thickness | 1.750" | Solid mounting surface! |
| Weight | 63 lbs. | Estimated weight of enclosure. |
